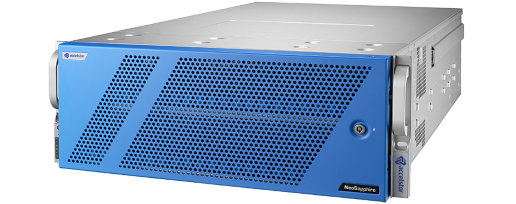

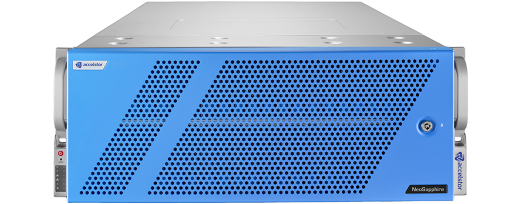

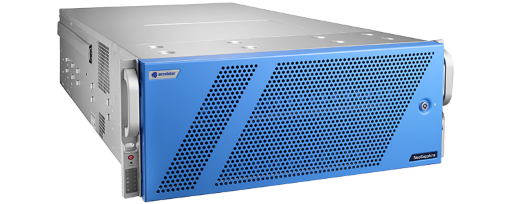

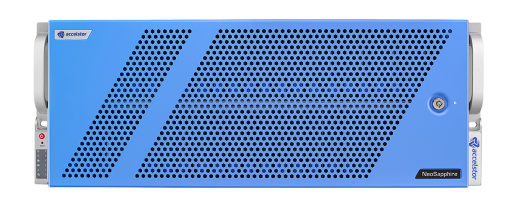

Expansion Cabinet
NeoSapphire J214
2021120303305960
2021120303310016
2021120303305975
2021120303310093

NeoSapphire J214

4U 72 bay
Max. 171TB usable
4 x 12G SAS ports

Specification

Form Factor
4U
IOPS for 4KB Random Writes
---
Flash Management
FlexiRemap Technology
Usable Capacity
Max. 171TB usable
Effective Capacity
---
Number of SSDs
72
SSD Type
SATA
FE Connectivity
2 x 12G SAS ports
Storage Protocol
---
Management Interface
---
Power Supply
1200W 1+1 redundancy
Expansion Mode
--
Software Function
--
Dimensions (W x D x H)
437mm x 699mm x 178mm
(17.2" x 27.5" x 7")
Net Weight
38.34kg
Environmental Temperature
Operating: 5°C to 35°C
Storage (Non-Operating): -40°C to 70°C
Environmental Humidity
Operating: 8% to 90% Non-Condensing
Storage (Non-Operating): 5% to 95% Non-Condensing
