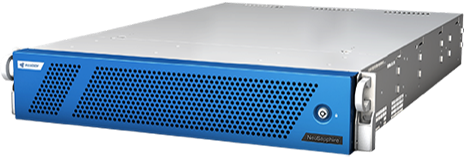

NeoSapphire P710
• Proprietary FlexiRemap technology unleashes the full potential of SSDs’ performance while increasing SSD lifespan, extends the storage system’s service life, and ensures sustained high performance.
• A variety of usable capacity options and effective capacity enhancement features, plus online expansion cabinets as needed without downtime in a later stage, provide flexible storage capacity.
• The international SPC-1 award for price/performance ratio demonstrates a low total cost of ownership and cost-effective storage solution.
• Tailored for cloud computing, HPC, AI, data mining, and other applications, it breaks the performance bottlenecks.
• A variety of usable capacity options and effective capacity enhancement features, plus online expansion cabinets as needed without downtime in a later stage, provide flexible storage capacity.
• The international SPC-1 award for price/performance ratio demonstrates a low total cost of ownership and cost-effective storage solution.
• Tailored for cloud computing, HPC, AI, data mining, and other applications, it breaks the performance bottlenecks.
Specification
| Form Factor |
2U
|
|---|---|
| IOPS for 4KB Random |
> 700 k on average while average latency < 1 ms
|
| Flash Management |
FlexiRemap Technology
|
| Usable Capacity |
14 / 28 / 57 TB
w/ Expansion Max. 228TB |
| Effective Capacity |
42 / 84 / 171 TB
|
| Number of SSDs |
24
w/ J212 Expansion Max. 72 drives w/ J214 Expansion Max. 168 drives |
| SSD Type |
SATA
|
| FE Connectivity |
4 x 32 / 16 G Fibre Channel LC SFP+
|
| Storage Protocol |
Fibre Channel, iSCSI, NFS
|
| Management Interface |
WebUI (HTTP/HTTPS)
CLI (via serial port), RESTful API |
| Power Supply |
1000W 1+1 Redundancy
|
| Expansion Mode |
Connect the expansion cabinet and expand capacity online without downtime
|
| Software Functions |
• Thin / Thick Provisioning
• Snapshot / Group Snapshot / Clone • Snapshot Backup / Recovery • Cloud Backup • Remote Replication • Inline / Background Deduplication • Inline / Background Compression • Self-Encrypting Drive (SED) • FlexiCluster • vSphere Web Client Plug-in |
| Dimensions (W x D x H) |
437mm x 723mm x 89mm
(17.2" x 28.5" x 3.5") |
| Net Weight |
19.8kg (per node)
|
| Environmental Temperature |
Operating: 10°C to 35°C
Storage (Non-Operating): 0°C to 40°C |
| Environmental Humidity |
Operating: 20% to 80% (non-condensing)
Storage (Non-operating): 5% to 90% (non-condensing) |
1. Based on the designated testing configurations, performance may vary with different applications or product configurations.
2. Useable Capacity has taken out the overhead used for the protection mechanism developed by AccelStor Technologies Ltd, and it can be directly used for business data storage.
3. Effective capacity is based on a calculation and assessment of the type of data being used and other factors such as compression etc. It is an estimate and may be better or worse depending on these factors.
4. Weight may vary depending on components and manufacturing variability.
